Brand Name :
SUPERISYS
Model Number :
16 channel digital input and output series
Certification :
ISO\FCC\ROSH
Place of Origin :
CHINA
MOQ :
one
Price :
Large quantity price negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 per day
Delivery Time :
1-2 work days
Stock :
In Stock
Description :
16 channel digital input and output series
Product description :
IP67 protection class
I/O connection mode :
M12, 5pin hole holder, A code
Number of IO-Link ports :
1x device

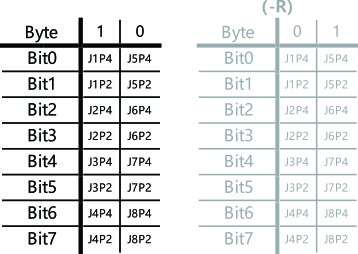

lO-Link deals with data length :
Two input bytes
Minimum cycle period :
3 ms
Rated operational voltage :
18…30V DC
Maximum load current (sensor) :
200 mA
Maximum load current (actuator) :
500 mA
Total current UI :
<1.6A
Total current UO :
<2.5A
IO-LINK RUN :
Red: communication interruption
PWR :
Yellow: the auxiliary power supply is not connected
I/O :
Red: port failure
Shell material :
PA6+GF
Shell color :
black
level of protection :
IP67, epoxy full potting
Boundary dimension :
155mm x53mm x28.7mm
Weight :
217g
Operating temperature :
-25°C...70°C
Storage/transport temperature :
40°C...85°C
Operation humidity :
5%...95%
Store/transport humidity :
5%...95%
Operating atmospheric pressure :
80KPa...106KPa
Store/transport atmospheric pressure :
80KPa...106KPa
I/O port tightening torque :
M12:0.5Nm
Application environment :
In accordance with EN-61131
Vibration measurement :
Comply with IEC60068-2
Impact test :
Comply with IEC60068-27
Free drop test :
Comply with IEC60068-32
Electromagnetic compatibility (EMC) :
Comply with IEC61000-4-2,-3,-4
Authentication :
CE,RoHS
Mounting hole specification :
∅4.3mm x 4
IO LINK :
Point To Point Networking Standard
